1. The Goldfish Memory Problem

Most AI agents suffer from goldfish memory — every conversation starts from zero. A user tells the agent their preferred AWS region, their tech stack, their deployment conventions. The next session? All of it is gone.

This is not a model limitation. It is an architecture problem, and Amazon Bedrock gives you the tools to solve it properly.

In this article I will show you exactly how to build a production-grade memory system for Bedrock Agents using three distinct layers: in-context memory, session summary memory, and long-term knowledge base memory. Everything is deployed with Terraform, and at the end you will see a live demo where a fact saved in Session A is retrieved correctly in a completely separate Session B — with Aurora pgvector as the backing store.

2. The Three Memory Layers Explained

Before touching any code it is worth being precise about what each layer does, because they solve different problems and have very different cost and latency profiles.

Layer 1 — In-Context Memory

Layer 1 is the model's prompt window. The agent sees the last N turns of the current conversation directly in its input tokens. It is fast and zero-configuration, but it resets between Lambda invocations if you are not careful about session IDs, and it cannot survive a session ending.

Layer 2 — SESSION_SUMMARY

Layer 2 is a native Bedrock feature. When you enable it on an agent, Bedrock automatically generates a rolling summary of the conversation and injects it into subsequent turns of the same session. You get cross-invocation memory within a session without writing any summarisation code. The summary persists for storage_days days — I use 30.

Layer 3 — Long-Term Knowledge Base

Layer 3 is what makes agents genuinely useful across sessions. When the agent learns something worth keeping — a user preference, a project decision, a tech stack fact — it calls an action group that writes the fact to S3 as a markdown document, triggers a Bedrock KB ingestion job, and the fact becomes searchable via Aurora pgvector in every future session. This layer persists across session boundaries, device boundaries, and time.

The architecture looks like this:

User message
     │
     ▼
Bedrock Agent (claude-3-5-sonnet)
     │
     ├─── Layer 1: Last N turns in prompt context
     │
     ├─── Layer 2: SESSION_SUMMARY injected automatically by Bedrock
     │
     └─── Layer 3: Knowledge Base (Aurora pgvector)
               │
               └─── Action Group → Lambda → S3 → KB Ingestion → pgvector

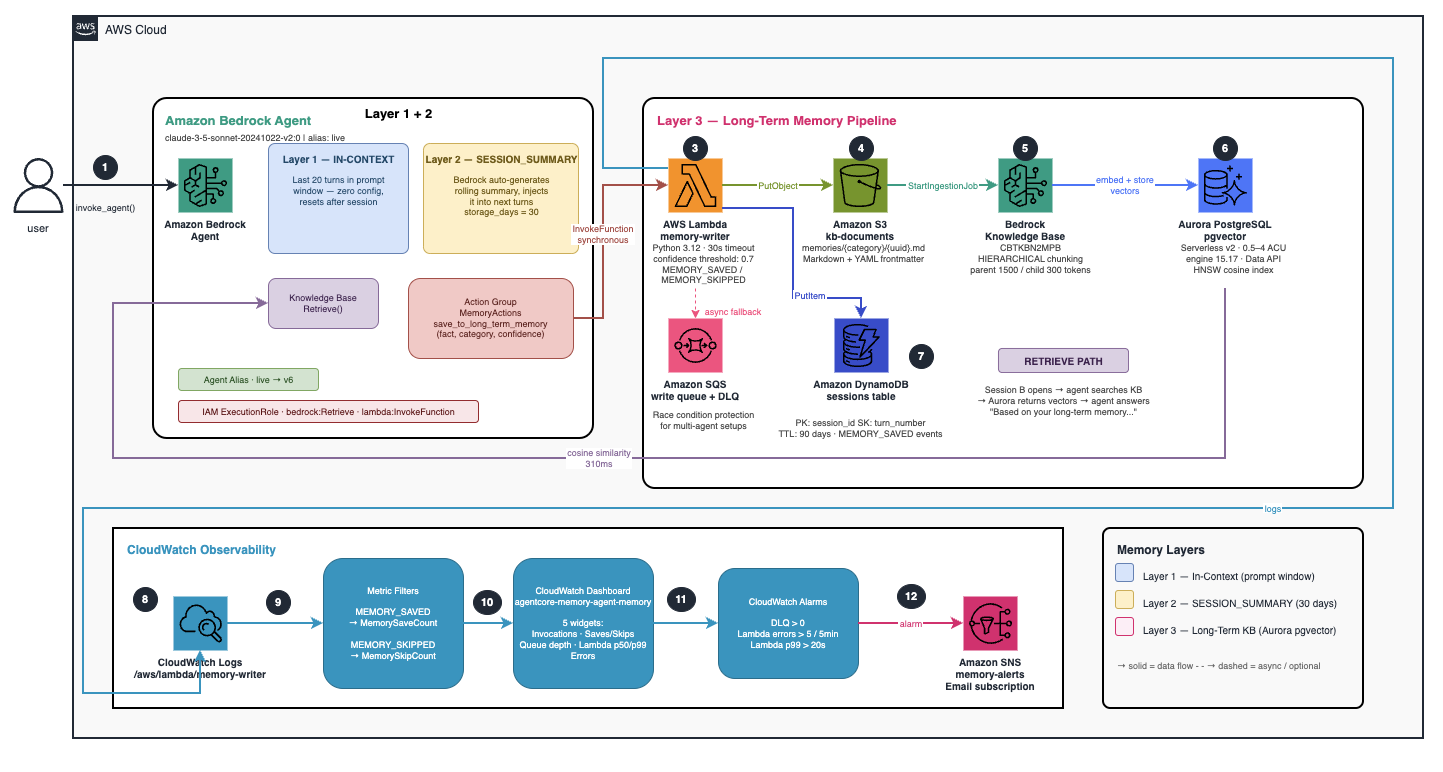

Figure 1 — High-level 3-layer architecture. The agent handles Layer 1 and Layer 2 natively; Layer 3 flows through an action group → Lambda → S3 → Bedrock KB ingestion → Aurora pgvector.

3. Infrastructure Overview (Terraform)

The Terraform project is organised into five modules:

terraform/
├── bootstrap/          # S3 state bucket + DynamoDB lock table
└── main/
    ├── main.tf         # Root module wiring
    └── modules/
        ├── aurora-pgvector/    # Aurora Serverless v2 + pgvector extension
        ├── knowledge-base/     # Bedrock KB backed by Aurora
        ├── agent/              # Bedrock Agent + action group + alias
        ├── session-memory/     # Lambda memory writer + DynamoDB + SQS
        └── observability/      # CloudWatch dashboard + alarms + metric filters

The backend uses S3 with DynamoDB locking:

terraform {
  backend "s3" {
    bucket         = "agentcore-memory-tfstate-<account_id>"
    key            = "agentcore-memory/terraform.tfstate"
    region         = "eu-west-1"
    dynamodb_table = "agentcore-memory-tfstate-lock"
    encrypt        = true
  }
}

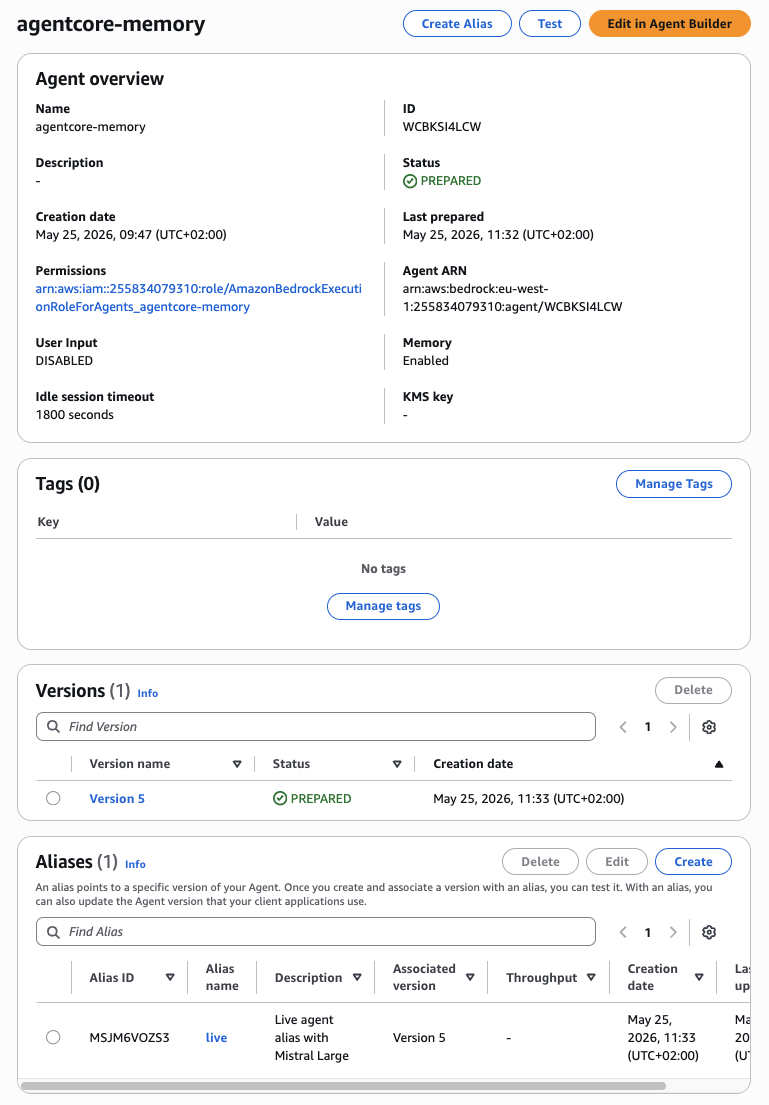

Figure 2 — The Bedrock Agent console showing the deployed agent with SESSION_SUMMARY memory enabled and the MemoryActions action group configured.

4. Layer 3 Deep Dive: Aurora pgvector as Long-Term Store

The most interesting part of the architecture is how long-term memory works. When the agent decides a fact is worth persisting, it calls the save_to_long_term_memory action group function. That function invokes a Lambda synchronously (Bedrock waits for the response), and the Lambda does three things:

1. Writes the fact as a structured markdown document to S3
2. Triggers a start_ingestion_job on the Bedrock Knowledge Base
3. Records the event in DynamoDB for observability

Aurora Serverless v2 Configuration

The vector store runs on Aurora Serverless v2 with the pgvector extension. Key decisions:

resource "aws_rds_cluster" "this" {
  cluster_identifier   = "agentcore-memory"
  engine               = "aurora-postgresql"
  engine_version       = "15.17"
  engine_mode          = "provisioned"
  enable_http_endpoint = true  # Required for Data API

  serverlessv2_scaling_configuration {
    min_capacity = 0.5
    max_capacity = 4
  }
}

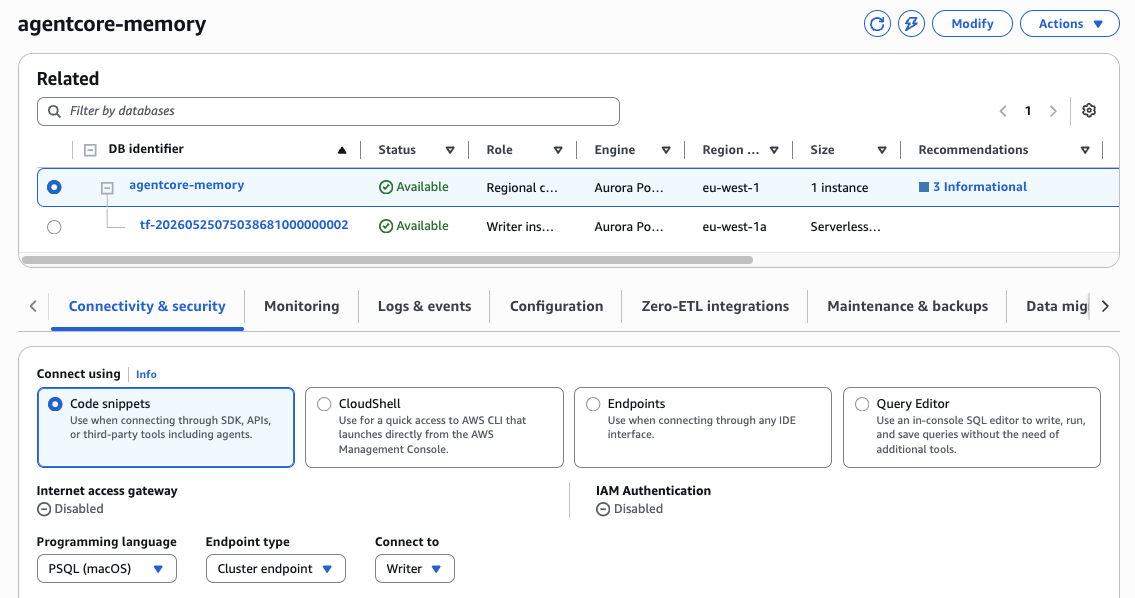

Figure 3 — Aurora Serverless v2 cluster in the RDS console. The pgvector extension is installed and the bedrock_integration.bedrock_kb table holds the vector embeddings.

The db_init Lambda creates the pgvector schema that Bedrock expects:

CREATE EXTENSION IF NOT EXISTS vector;
CREATE SCHEMA IF NOT EXISTS bedrock_integration;

CREATE TABLE IF NOT EXISTS bedrock_integration.bedrock_kb (
    id          uuid PRIMARY KEY,
    embedding   vector(1536),
    chunks      text,
    metadata    json
);

CREATE INDEX IF NOT EXISTS bedrock_kb_embedding_idx
    ON bedrock_integration.bedrock_kb
    USING hnsw (embedding vector_cosine_ops);

Knowledge Base with HIERARCHICAL Chunking

The Bedrock Knowledge Base is configured with hierarchical chunking, which creates both parent and child chunks. The agent searches the smaller child chunks for precision but retrieves the larger parent chunk for context:

vector_ingestion_configuration {
  chunking_configuration {
    chunking_strategy = "HIERARCHICAL"
    hierarchical_chunking_configuration {
      level_configuration {
        max_token_count = 1500  # parent chunk
      }
      level_configuration {
        max_token_count = 300   # child chunk (what gets searched)
      }
      overlap_tokens = 60
    }
  }
}

For memory documents this is slightly over-engineered — the facts are short enough to fit in a single chunk — but for real knowledge bases with large documents this chunking strategy makes a significant difference in retrieval quality.

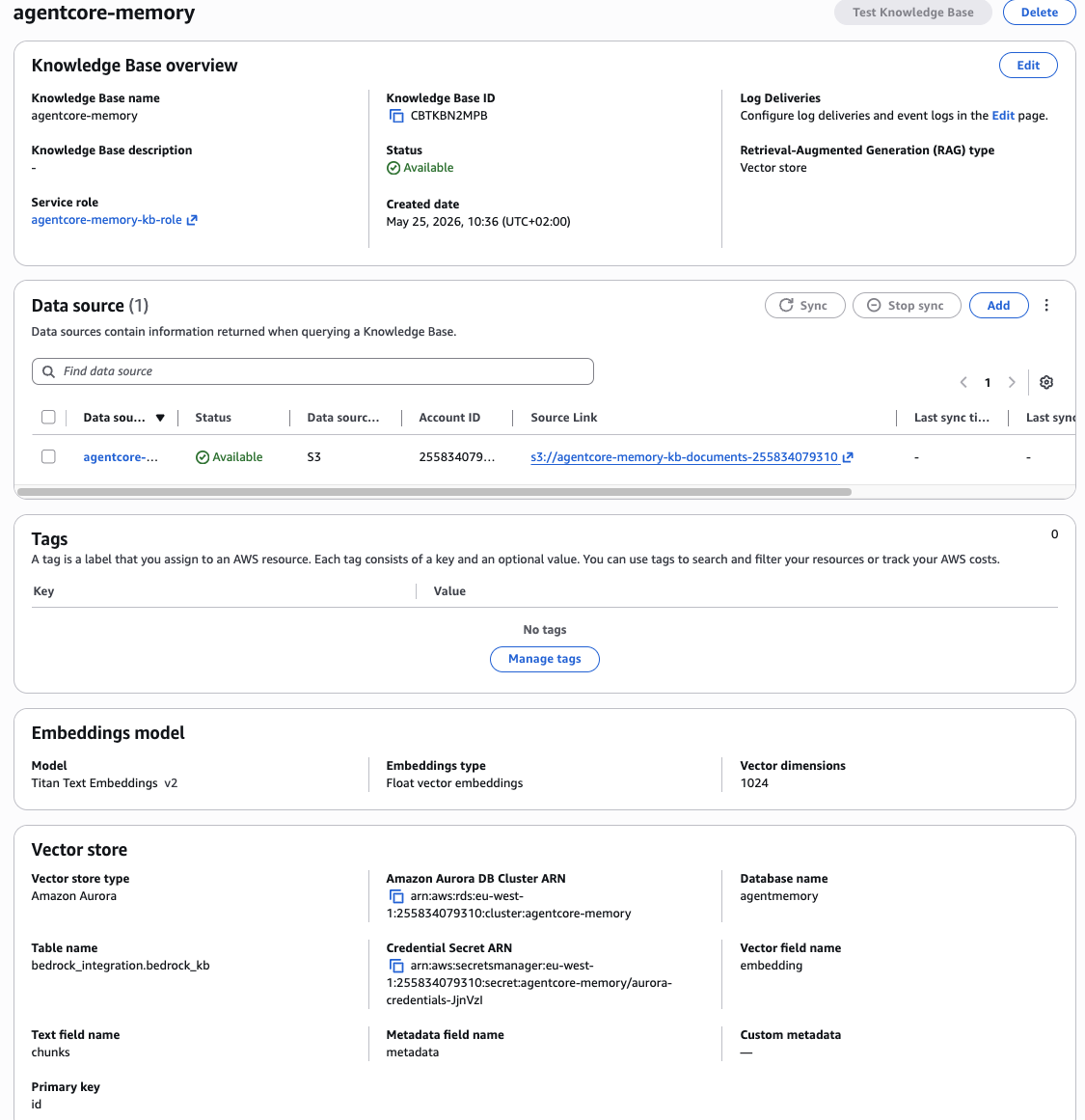

Figure 4 — The Bedrock Knowledge Base backed by Aurora pgvector (KB ID: CBTKBN2MPB). The data source points to the S3 prefix where the memory writer Lambda saves markdown facts.

The Memory Writer Lambda

The Lambda handles Bedrock Agent action group events (not SQS — the agent invokes it synchronously). The response format is specific to function-based action groups — get it wrong and the agent reports an invocation error even though your Lambda ran successfully:

def lambda_handler(event, context):
    function_name = event.get("function", "save_to_long_term_memory")
    session_id = event.get("sessionId", "unknown")
    parameters = {p["name"]: p["value"] for p in event.get("parameters", [])}

    fact = parameters.get("fact")
    category = parameters.get("category")
    confidence = float(parameters.get("confidence", 0))

    result = _process_memory_save(session_id, fact, category, confidence)

    return {
        "messageVersion": "1.0",
        "response": {
            "actionGroup": "MemoryActions",
            "function": function_name,
            "functionResponse": {
                "responseBody": {
                    "TEXT": {"body": json.dumps(result)}
                }
            }
        }
    }

The confidence threshold at 0.7 acts as a quality gate. Facts below the threshold log MEMORY_SKIPPED and return without writing anything to S3. This prevents low-confidence assertions from polluting the knowledge base:

if confidence < CONFIDENCE_THRESHOLD:
    logger.info("MEMORY_SKIPPED session_id=%s confidence=%.2f", session_id, confidence)
    return {"status": "skipped", ...}

Each saved fact is a markdown document with YAML frontmatter. Bedrock ingests this, chunks it, embeds it, and stores the vector in Aurora. From that point forward every new session can retrieve it via semantic search:

---
id: b0b6fc43-9108-4f41-9184-8406acb80fb7
session_id: demo-layer3-a-a831d867
category: preference
confidence: 1.0
saved_at: 2026-05-25T10:28:54+00:00
---

# Memory: preference

I always prefer eu-west-1 as my primary AWS region because my users are in Europe.

_Saved from session demo-layer3-a-a831d867 at 2026-05-25T10:28:54+00:00_

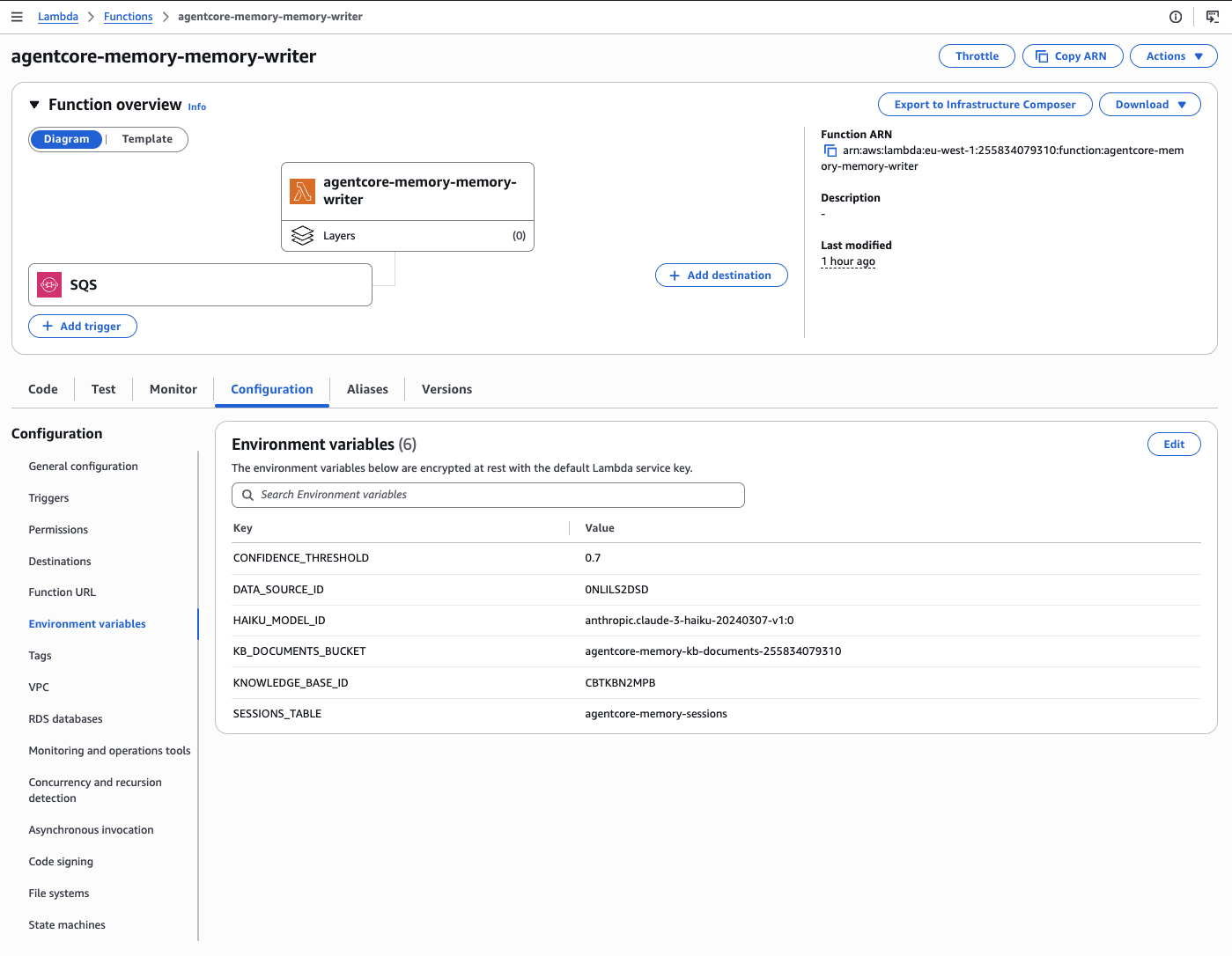

Figure 5 — The memory writer Lambda (Python 3.12, 30s timeout). It handles Bedrock action group events synchronously and writes facts to S3 before triggering a KB ingestion job.

Supporting Infrastructure: DynamoDB & SQS

Every memory write event is also recorded in DynamoDB for auditing and replay. The table uses session_id as the partition key and a millisecond timestamp as the sort key, with a 90-day TTL.

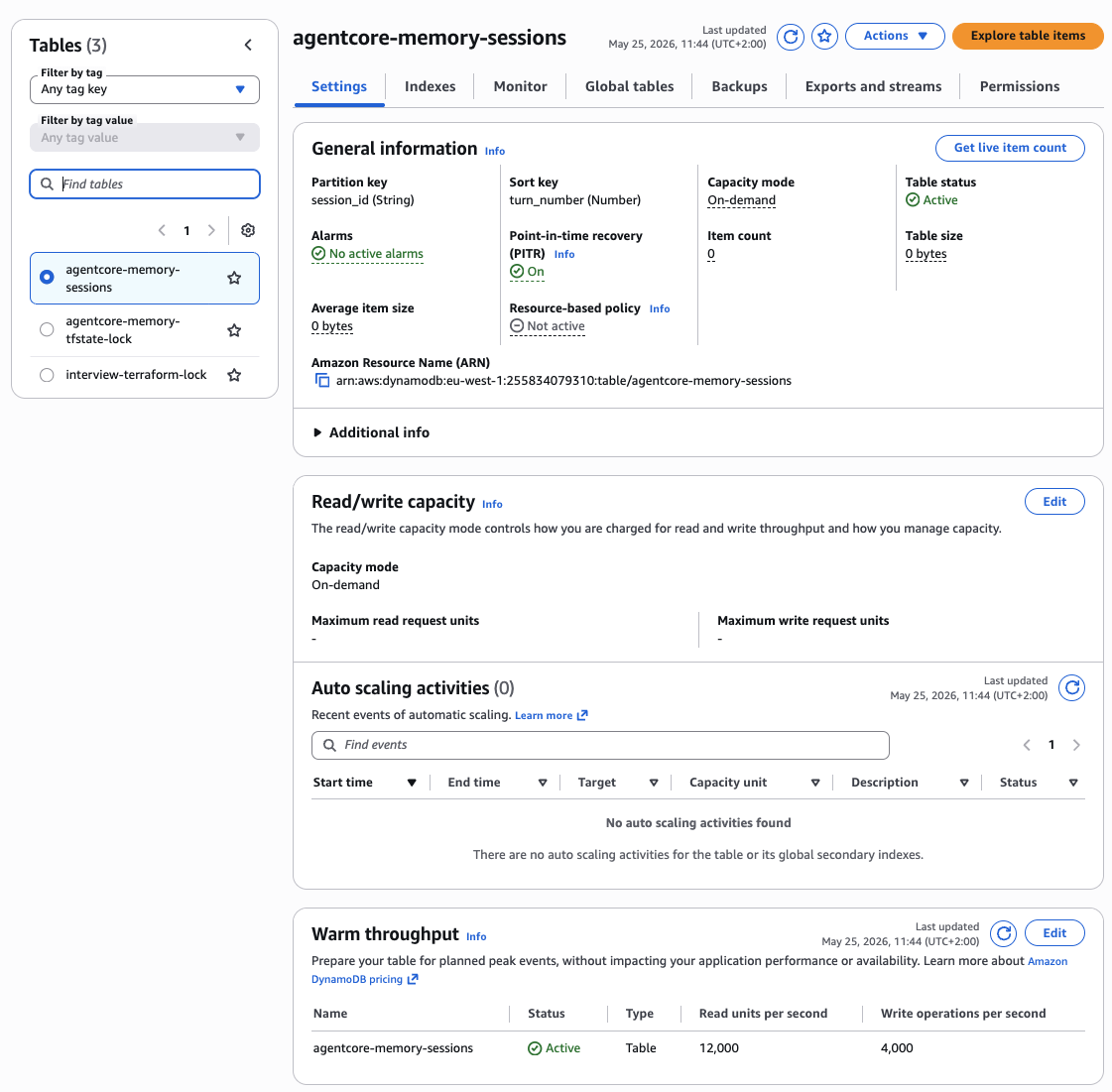

Figure 6 — DynamoDB sessions table recording every memory save event. The PK/SK design enables efficient lookup by session, and the TTL keeps storage costs low.

The SQS queue in front of the Lambda is there as a race-condition buffer for multi-agent setups. If two agents try to save facts simultaneously, the queue serialises the writes and the DLQ catches any failures silently rather than dropping them.

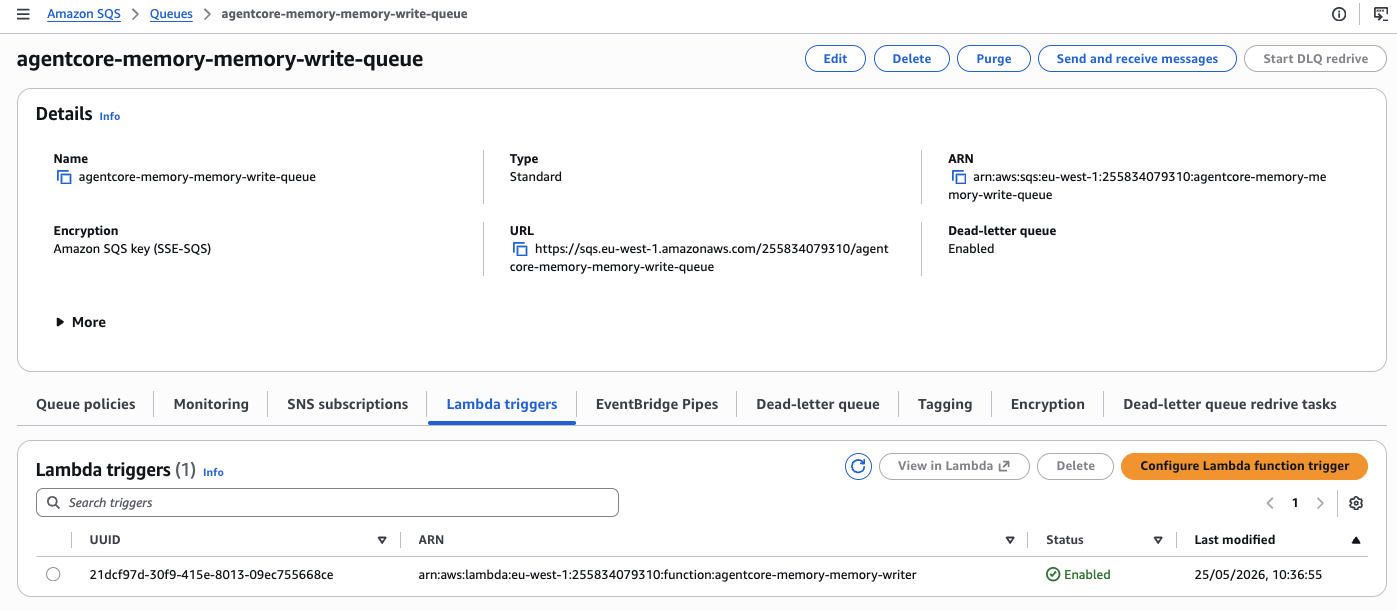

Figure 7 — SQS queue and DLQ for the memory writer. The DLQ CloudWatch alarm fires if any message lands there — a reliable signal that KB writes are failing silently.

5. Agent Configuration & Instruction Design

Model Selection — A Subtle Gotcha

When configuring a Bedrock Agent foundation_model, do not use the cross-region inference prefix. Despite invoking the agent in eu-west-1, the correct value is:

foundation_model = "anthropic.claude-3-5-sonnet-20241022-v2:0"

SESSION_SUMMARY Memory

Enabling Layer 2 is a single block in the agent resource:

memory_configuration {
  enabled_memory_types = ["SESSION_SUMMARY"]
  storage_days         = 30
}

Bedrock handles everything — generating the summary, storing it, and injecting it into subsequent turns. You do not write any summarisation code.

Agent Instruction Design

The instruction is where Layer 3 retrieval lives or dies. The first version of this agent did not reliably search the knowledge base because the instruction did not tell it when to do so. Without explicit rules, the agent treats the knowledge base as optional. The fix was adding explicit retrieval and save rules:

RETRIEVAL RULES — always search the knowledge base BEFORE answering when:
- The user asks about their preferences, history, or past decisions
- The user asks "what do you know about me" or "from long-term memory"
- The user asks about their AWS region, tech stack, or project context
- Any question that could be answered by previously saved facts

SAVE RULES — call save_to_long_term_memory when:
- User states a preference ("I always prefer X over Y")
- User shares a fact about their project or context
- A decision was made that will affect future sessions

Always confirm saves: "I've saved [fact] to your long-term memory."
Always cite retrievals: "Based on your long-term memory, [fact]."

Action Group Schema

The save_to_long_term_memory function is defined using Bedrock's function schema (not OpenAPI). The category and confidence parameters serve two purposes: they help the Lambda decide whether to persist the fact, and they structure the S3 key path (memories/preference/, memories/decision/, etc.):

function_schema {
  member_functions {
    functions {
      name        = "save_to_long_term_memory"
      description = "Saves an important fact or preference to long-term memory"
      parameters {
        map_block_key = "fact"
        type          = "string"
        description   = "The fact or preference to save"
        required      = true
      }
      parameters {
        map_block_key = "category"
        type          = "string"
        description   = "Category: preference | project_context | decision | user_profile"
        required      = true
      }
      parameters {
        map_block_key = "confidence"
        type          = "number"
        description   = "Confidence score 0.0-1.0 that this fact is worth persisting"
        required      = true
      }
    }
  }
}

Agent Versioning

Bedrock Agent aliases cannot point to the DRAFT version. After every terraform apply that modifies the agent, you need to prepare a new version manually:

# Prepare a new version
aws bedrock-agent prepare-agent --agent-id WCBKSI4LCW

# Update the alias to point to the new version number
aws bedrock-agent update-agent-alias \
  --agent-id WCBKSI4LCW \
  --agent-alias-id 2FESL8UO5D \
  --agent-alias-name live \
  --routing-configuration '[{"agentVersion": "6"}]'

6. Observability: CloudWatch Dashboard & Alarms

The CloudWatch module sets up metric filters that parse structured log markers from the Lambda. One critical lesson learned: use simple substring patterns rather than space-delimited field patterns. Lambda's Python logger outputs tab-separated log lines, so field-position patterns never match.

# Simple substring match — works with Lambda's tab-delimited log format
resource "aws_cloudwatch_log_metric_filter" "memory_saves" {
  name           = "${var.name}-memory-saves"
  log_group_name = "/aws/lambda/${var.memory_writer_function_name}"
  pattern        = "MEMORY_SAVED"

  metric_transformation {
    name      = "MemorySaveCount"
    namespace = "${var.name}/AgentMemory"
    value     = "1"
    unit      = "Count"
  }
}

Three alarms cover the main failure modes: DLQ message count (stuck facts), Lambda error rate (above 5 errors in 2 evaluation periods), and Lambda p99 duration exceeding 20 seconds approaching the 30s timeout.

One important note about the Agent Invocations widget: AWS Bedrock does not publish a per-agent InvocationCount metric to CloudWatch. Lambda invocations on the memory writer function are a reliable proxy for Layer 3 activity, and session turn counts can be tracked via a custom metric filter on the Lambda logs.

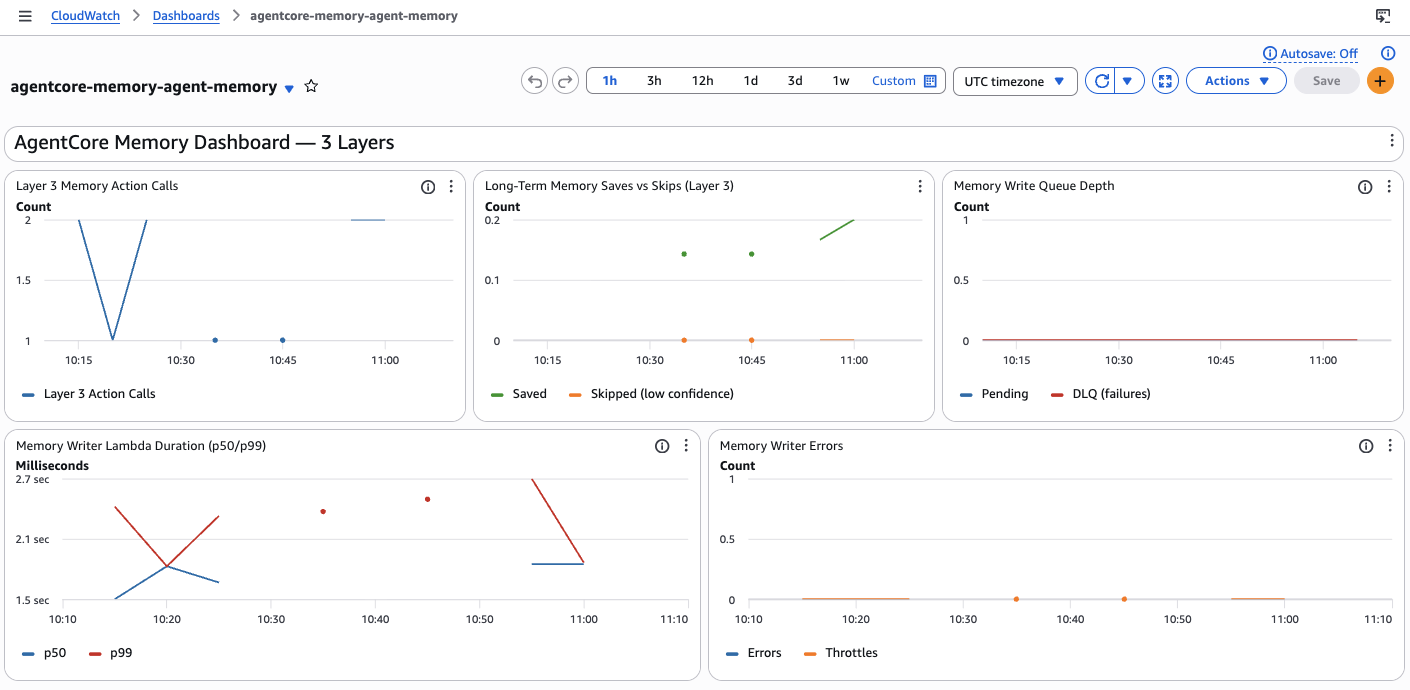

Figure 8 — The AgentCore Memory CloudWatch dashboard. From left to right: Lambda invocations (proxy for agent activity), Memory Saves vs Skips (Layer 3 quality gate metrics), and SQS queue depth including DLQ failures.

7. Live Demo Results — All 3 Layers

Layer 1 — In-Context

Turn 1: "My name is Roman and I'm building AI agents on AWS."
Turn 2: "I mentioned my name earlier — what is it?"
Agent: "Your name is Roman."

The agent recalls from its prompt context. Zero latency, zero additional cost.

Layer 2 — Session Summary

After three turns establishing preferences (Terraform over CDK, Python/Lambda/Bedrock stack, working on an article about agent memory patterns), the session is resumed:

"Summarise what you know about me from this session."

"You prefer Terraform over CDK for infrastructure, your tech stack includes Python, AWS Lambda, and Bedrock, and you are working on an article about agent memory patterns."

This summary was generated by Bedrock automatically — not by any code I wrote.

Layer 3 — Long-Term Cross-Session

Session A saves the fact:

User:  Please save this to my long-term memory: I always prefer eu-west-1
       as my primary AWS region because my users are in Europe. Confidence: high.

Agent: I've saved your preference for the 'eu-west-1' AWS region to your long-term memory.

The agent trace confirms the full pipeline:

ACTION_GROUP → MemoryActions__save_to_long_term_memory
  parameters: fact="I always prefer eu-west-1...", confidence=1, category=preference
  response: {"status": "saved", "document_key": "memories/preference/b0b6fc43...md"}

Session B — a completely new session with a different session_id, no shared context:

User: What do you know about my preferred AWS region from long-term memory?

The trace shows the agent immediately querying the KB:

KNOWLEDGE_BASE → knowledgeBaseLookupInput: "What is the users preferred AWS region"
  → 5 documents retrieved from Aurora pgvector (310ms)

"Based on your long-term memory, your preferred AWS region is eu-west-1. This preference is saved across multiple sessions and is attributed to the fact that your users are primarily located in Europe."

8. Cost Considerations

Running this stack continuously costs roughly:

Service	Config	Monthly Cost	Notes
Aurora Serverless v2	0.5 ACU minimum	~$43	Dominant cost. Set min_capacity = 0 to pause after inactivity (~25s cold start)
Bedrock KB	Per query	~$0.00025/1K tokens	Charged per embedding query on retrieval
Lambda	On-demand	~$0	Essentially free at demo/small scale
S3	Memory documents	~$0	Negligible for document storage
DynamoDB	On-demand	~$0	Negligible at this scale

For a production agent serving real users the Aurora cost is the dominant factor. Consider sharing the Aurora cluster across multiple knowledge bases if you are running several agents.

9. Deployment Steps

# 1. Bootstrap the Terraform state backend
cd terraform/bootstrap
terraform init && terraform apply

# 2. Deploy the full stack (~15 min — Aurora cluster creation is slow)
cd ../main
terraform init
terraform apply -var='aurora_master_password=<your-password>'

# 3. Grab the outputs
terraform output

# 4. Run the demo
cd ../..
python3 src/demo/agent_demo.py \
  --agent-id $(terraform -chdir=terraform/main output -raw agent_id) \
  --alias-id $(terraform -chdir=terraform/main output -raw agent_alias_id) \
  --layer all

10. Key Takeaways

The three-layer architecture maps cleanly onto different memory timescales:

• In-context (Layer 1): this turn, this conversation — milliseconds, free
• SESSION_SUMMARY (Layer 2): this session, across invocations — automatic, ~30 days retention
• Knowledge Base (Layer 3): across sessions, across time — semantic search, Aurora pgvector backing

The most important implementation detail is the agent instruction. Simply wiring up a Knowledge Base does not mean the agent will use it. You need explicit rules about when to search and when to save, or the agent treats the KB as an optional tool rather than a required memory source.

The confidence threshold at the Lambda layer is equally important for production use. Without it, every casual statement the user makes ends up persisted forever. With it, only high-confidence facts make it into the knowledge base, keeping retrieval quality high as the memory grows.

If you are building agents that users interact with repeatedly — support assistants, coding assistants, operational agents — this architecture gives you the foundation to make them feel like they actually know your users.

---
